Public Member Functions | List of all members
oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT > Class Template Reference

///////////////////////////////////////////////////////////////////// ///////////////////////////////////////////////////////////////////// More...

#include <rectangle_with_moving_cylinder_mesh.template.h>

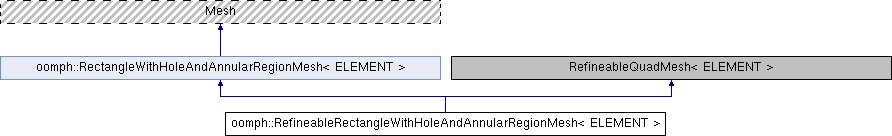

Inheritance diagram for oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT >:
oomph::RectangleWithHoleAndAnnularRegionMesh< ELEMENT >

Public Member Functions

 RefineableRectangleWithHoleAndAnnularRegionMesh (GeomObject *cylinder_pt, const double &annular_region_radius, const double &length, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
 Constructor. Pass pointer to geometric object that represents the cylinder, the length and height of the domain. The GeomObject must be parametrised such that $\zeta \in [0,2\pi]$ sweeps around the circumference in anticlockwise direction. Timestepper defaults to Steady default timestepper.

virtual ~RefineableRectangleWithHoleAndAnnularRegionMesh ()
 Destructor: Empty.

- Public Member Functions inherited from oomph::RectangleWithHoleAndAnnularRegionMesh< ELEMENT >
 RectangleWithHoleAndAnnularRegionMesh (GeomObject *cylinder_pt, const double &annular_region_radius, const double &length, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
 Constructor: Pass pointer to geometric object that represents the cylinder, the length and height of the domain. The GeomObject must be parametrised such that $\zeta \in [0,2\pi]$ sweeps around the circumference in anticlockwise direction. Timestepper defaults to Steady default timestepper.

 ~RectangleWithHoleAndAnnularRegionMesh ()
 Destructor: We made the Domain object so we have a responsibility for deleting it!

RectangleWithHoleAndAnnularRegionDomain * domain_pt ()
 Access function to the domain.


Additional Inherited Members

- Protected Attributes inherited from oomph::RectangleWithHoleAndAnnularRegionMesh< ELEMENT >
RectangleWithHoleAndAnnularRegionDomain * Domain_pt
 Pointer to the domain.


Detailed Description

template<class ELEMENT>
class oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT >

///////////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////////

Refineable version of RectangleWithHoleAndAnnularRegionMesh. Applies one uniform refinement immediately to avoid problems with the automatic applications of boundary conditions in subsequent refinements

Definition at line 269 of file rectangle_with_moving_cylinder_mesh.template.h.

Constructor & Destructor Documentation

◆ RefineableRectangleWithHoleAndAnnularRegionMesh()

template<class ELEMENT >
oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT >::RefineableRectangleWithHoleAndAnnularRegionMesh ( GeomObject *  cylinder_pt,
const double &  annular_region_radius,
const double &  length,
TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper
)
inline

Constructor. Pass pointer to geometric object that represents the cylinder, the length and height of the domain. The GeomObject must be parametrised such that $\zeta \in [0,2\pi]$ sweeps around the circumference in anticlockwise direction. Timestepper defaults to Steady default timestepper.

Definition at line 280 of file rectangle_with_moving_cylinder_mesh.template.h.

References oomph::RectangleWithHoleAndAnnularRegionMesh< ELEMENT >::Domain_pt.

◆ ~RefineableRectangleWithHoleAndAnnularRegionMesh()

template<class ELEMENT >
virtual oomph::RefineableRectangleWithHoleAndAnnularRegionMesh< ELEMENT >::~RefineableRectangleWithHoleAndAnnularRegionMesh ( )
inlinevirtual

Destructor: Empty.

Definition at line 309 of file rectangle_with_moving_cylinder_mesh.template.h.

The documentation for this class was generated from the following file:
