oomph::RefineableQuadFromTriangleMesh< ELEMENT > Class Template Reference

///////////////////////////////////////////////////////////////// ///////////////////////////////////////////////////////////////// More...

#include <quad_from_triangle_mesh.template.h>

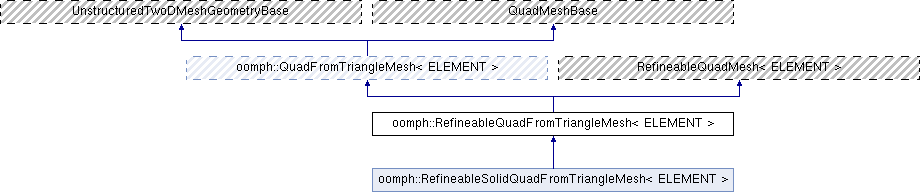

Inheritance diagram for oomph::RefineableQuadFromTriangleMesh< ELEMENT >:

Public Member Functions
	RefineableQuadFromTriangleMesh (TriangleMeshParameters &triangle_mesh_parameters, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Build mesh, based on the specifications on TriangleMeshParameters.
virtual void	refine_uniformly ()
	Refine mesh uniformly.
void	refine_uniformly (DocInfo &doc_info)
	Refine mesh uniformly and doc process.
void	adapt (const Vector< double > &elem_error)
	Overload the adapt function (to ensure nodes are snapped to the boundary)
	RefineableQuadFromTriangleMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &poly_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Build mesh, based on the polyfiles.
virtual	~RefineableQuadFromTriangleMesh ()
	Empty Destructor.
Public Member Functions inherited from oomph::QuadFromTriangleMesh< ELEMENT >
	QuadFromTriangleMesh ()
	Empty constructor.
	QuadFromTriangleMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &poly_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false, const bool &allow_automatic_creation_of_vertices_on_boundaries=true)
	Constructor with the input files.
	QuadFromTriangleMesh (TriangleMeshParameters &triangle_mesh_parameters, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper)
	Build mesh, based on the specifications on TriangleMeshParameters. All the actual work is done in UnstructuredTwoDMeshGeometryBase.
void	generic_constructor (Vector< TriangleMeshPolygon * > &outer_boundary_pt, Vector< TriangleMeshPolygon * > &internal_polygon_pt, Vector< TriangleMeshOpenCurve * > &open_polylines_pt, const double &element_area, Vector< Vector< double > > &extra_holes_coordinates, std::map< unsigned, Vector< double > > &regions_coordinates, std::map< unsigned, double > &regions_areas, TimeStepper *time_stepper_pt, const bool &use_attributes, const bool &refine_boundary, const bool &refine_internal_boundary)
	A general-purpose construction function that builds the mesh once the different specific constructors have assembled the appropriate information.
	QuadFromTriangleMesh (const QuadFromTriangleMesh &dummy)=delete
	Broken copy constructor.
void	operator= (const QuadFromTriangleMesh &)=delete
	Broken assignment operator.
	~QuadFromTriangleMesh ()
	Empty destructor.
void	build_from_scaffold (TriangleScaffoldMesh *tmp_mesh_pt, TimeStepper *time_stepper_pt, const bool &use_attributes)
	Build the quad mesh from the given scaffold mesh.

Additional Inherited Members
Public Attributes inherited from oomph::QuadFromTriangleMesh< ELEMENT >
TimeStepper *	Time_stepper_pt
	Timestepper used to build elements.
bool	Use_attributes
	Boolean flag to indicate whether to use attributes or not (required for multidomain meshes)

Detailed Description

template<class ELEMENT>
class oomph::RefineableQuadFromTriangleMesh< ELEMENT >

///////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////

Unstructured refineable QuadFromTriangleMesh

Definition at line 575 of file quad_from_triangle_mesh.template.h.

Constructor & Destructor Documentation

RefineableQuadFromTriangleMesh() [1/2]

template<class ELEMENT >

oomph::RefineableQuadFromTriangleMesh< ELEMENT >::RefineableQuadFromTriangleMesh ( TriangleMeshParameters &  triangle_mesh_parameters, TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper  )

inline

Build mesh, based on the specifications on TriangleMeshParameters.

Definition at line 584 of file quad_from_triangle_mesh.template.h.

RefineableQuadFromTriangleMesh() [2/2]

template<class ELEMENT >

oomph::RefineableQuadFromTriangleMesh< ELEMENT >::RefineableQuadFromTriangleMesh ( const std::string &  node_file_name, const std::string &  element_file_name, const std::string &  poly_file_name, TimeStepper *  time_stepper_pt = &Mesh::Default_TimeStepper  )

inline

Build mesh, based on the polyfiles.

Definition at line 621 of file quad_from_triangle_mesh.template.h.

~RefineableQuadFromTriangleMesh()

template<class ELEMENT >

virtual oomph::RefineableQuadFromTriangleMesh< ELEMENT >::~RefineableQuadFromTriangleMesh ( )

inlinevirtual

Empty Destructor.

Definition at line 633 of file quad_from_triangle_mesh.template.h.

Member Function Documentation

adapt()

template<class ELEMENT >

void oomph::RefineableQuadFromTriangleMesh< ELEMENT >::adapt

(

const Vector< double > &

elem_error

)

Overload the adapt function (to ensure nodes are snapped to the boundary)

///////////////////////////////////////////////////////////////// /////////////////////////////////////////////////////////////////

Adapt problem based on specified elemental error estimates

Definition at line 1032 of file quad_from_triangle_mesh.template.cc.

References oomph::TetgenMesh< ELEMENT >::TetgenMesh().

refine_uniformly() [1/2]

template<class ELEMENT >

virtual void oomph::RefineableQuadFromTriangleMesh< ELEMENT >::refine_uniformly ( )

inlinevirtual

Refine mesh uniformly.

Definition at line 595 of file quad_from_triangle_mesh.template.h.

refine_uniformly() [2/2]

template<class ELEMENT >

void oomph::RefineableQuadFromTriangleMesh< ELEMENT >::refine_uniformly ( DocInfo &  doc_info )

inline

Refine mesh uniformly and doc process.

Definition at line 604 of file quad_from_triangle_mesh.template.h.

---

The documentation for this class was generated from the following files:

• quad_from_triangle_mesh.template.h
• quad_from_triangle_mesh.template.cc
